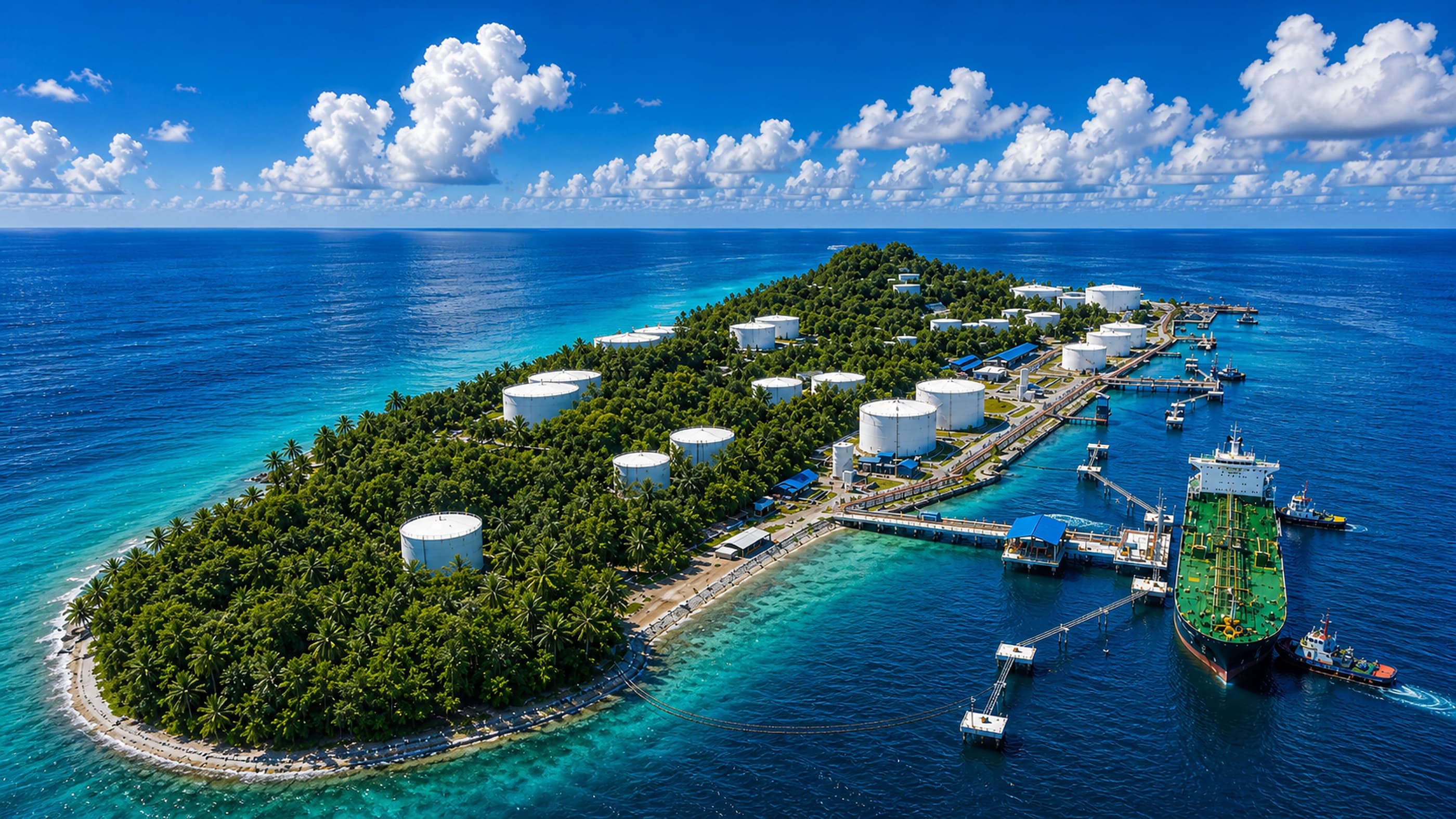

PT Lepen Kencana Utama — Fuel Terminal Pulau Sambu

Riau Islands · Indonesia

A regional fuel hub strategically anchored between Singapore and Batam — 60 hectares, six jetties, 150,000 KL of HSD capacity.

Trusted partner for fuel storage, blending, and distribution across South-East Asia's most-trafficked maritime corridor.

Enquire Now →Learn more

60Ha

Total Land Area

150KKL

Storage Capacity

Active Jetties

23km

To Singapore

About the Terminal

A Strategic Fuel Hub in Southeast Asia

Located on Pulau Sambu in the Riau Islands, our terminal occupies over 60 hectares of land with direct access to major shipping routes. Its proximity to Singapore (23.1 km) and Batam (17.3 km) makes it an ideal hub for regional fuel storage and distribution.

Heritage

A century of strategic energy.

1927—

Originally operated by Royal Dutch Shell as a strategic fuel depot

1963–64—

Transformed into the headquarters of Marine Corps Operations Command

1965—

Acquired by Pertamina, Indonesia's national energy company

2021—

Transferred to PT Pertamina Energy Terminal (PT PIS), continuing the legacy of energy distribution

Footprint

Sixty hectares, precisely allocated.

Total Land Area60+Ha

Tank Yard & Jetty34.8Ha

Office0.2Ha

Residential & Supporting25Ha

Infrastructure

World-Class Terminal Facilities

Jetty Facilities

Jetty	Capacity (DWT)	Draft (mLWS)	Ship Size	Process	Product	Status
Jetty 1	17.5K – 50K	12	Medium Range	Loading / Discharge	HSD, MFO 180 & 380, LSFO, LSWR, LCO, DCO, VR, Slop Oil	Operational
Jetty 2	400	10	Bulk Lighter	Discharge	—	Unoperated
Jetty 3	3.5K – 6.5K	12	Small Tanker II	Loading / Discharge	HSD, MFO 180 & 380, LSFO, LSWR, LCO, DCO, VR, Slop Oil	Operational
Jetty 4	400	6	Bulk Lighter	Loading / Discharge	—	Unoperated
Jetty 5	200	6.5	Bulk Lighter	Loading / Discharge	Material / Equipment	Operational
Jetty 6	50K – 100K	17.1	Large Range I	Loading / Discharge	HSD & Slop Oil	Operational

Storage Facilities

Tank Specs

Four primary tanks.

Tank #	Product	Dia. (m)	Ht. (m)	KL	MT
T-40	HSD	42	19.8	25,000	20,750
T-41	HSD	42	19.8	25,000	20,750
T-42	HSD	60	19.2	50,000	41,500
T-43	HSD	60	19.2	50,000	41,500
HSD Total Capacity				150,000	124,500

Tank Yard

Five integrated systems.

01Inter-tank circulation system
02Flow meter integration
03Automatic Tank Gauging (ATG)
04Dipping tape measurement
05Complete utility systems

Distribution

Onshore delivery.

01API 650 rated piping system
02Line sizes: 12", 16", 24", 30"
03Re-circulation & blending capability
04Flow rates up to 2,000 KL/hr (24" line)
05Terminal automation system

Quality

Product Specifications

Our terminal handles a comprehensive range of fuel products with rigorous quality testing conducted at our on-site laboratory.

01 / 03

HSD (High Speed Diesel)

→Density 15°C: 815–870 Kg/m³
→Cetane Index: ≥ 45
→Viscosity 40°C: 2.0–4.5 mm²/s
→Distillation 90%: ≤ 370°C
→Flash Point: ≥ 52°C
→Sulfur: ≤ 0.25% m/m
→Pour Point: ≤ 18°C

02 / 03

MFO / LSFO

→Density 15°C: ≤ 991 Kg/m³
→Viscosity 50°C: ≤ 380 mm²/s
→Pour Point: ≤ 40°C
→Flash Point: ≥ 60°C
→Total Sediment: ≤ 0.1%
→Water Content: ≤ 1% v/v
→Vanadium: ≤ 300 mg/kg
→Sulfur: ≤ 0.5% m/m

03 / 03

Additional Products

→LSWR (Low Sulfur Waxy Residue)
→LCO (Light Cycle Oil)
→DCO (Decant Oil)
→VR (Vacuum Residue)
→Slop Oil processing
→MFO 180 & MFO 380 grades
→B20 biodiesel capable

Pumping & Metering Systems

Loading / Discharge

Jetty 1 & 62,000 KL/hr · 24" line

Jetty 3500 KL/hr · 16" line

ITT Flowrate (HSD & B20)Up to 1,500 m³/hr

ITT Flowrate (MFO 180)500–1,000 m³/hr

Flow Meter Systems

01OVAL flow meters installed (2016) for all major product lines
02HSD meters: 3,000 KL/hr capacity
03LSFO/MFO 180 meters: up to 2,000 KL/hr
04Secondary metering: 500–1,000 KL/hr systems
05Centrifugal & positive displacement pump types
06Variable Speed Drive (VSD) equipped

Support

Supporting Infrastructure

Power Generation

→3 × Caterpillar 2,725 KVA (2015)
→1 × Perkins 800 KVA backup
→Reliable 24/7 power supply
→Redundant capacity

HSSE Facilities

→Fire Jeep — ISUZU (2015)
→3 × Patterson Fire Pumps
→2 × Patterson Jockey Pumps
→Portable fire equipment

Heating Systems

→Hot Oil System for MFO
→5,000 KW burner capacity
→Circulated to 10 fuel oil tanks
→Automated temperature control

Amenities

→SWRO water treatment plant
→28-room worker apartment
→Tennis, futsal, volleyball courts
→Badminton, table tennis, fitness center

Get in Touch

Partner with Us

Interested in our fuel storage and distribution services? Fill in the form below and our team will contact you with detailed information and pricing.
